Master Loader Elite Series Load Frame
The Master Loader Elite series load frame provides multi-purpose loading systems for soil testings. The load frame conducts multiple testing operations such as: CB triaxial, UC, CBR, LBR, Marshall, TSR and SCB asphalt tests. Its heavy-duty design and stepper-motor provides years of reliable service and performs any tests up to a load capacity of 11000 lbf. With its 4-channel data logger and touchscreen controller, the load frame becomes a standalone device of full test control and data logging.
Touchscreen Controller provides:
- 4-channel data acquisition
- Hi-res, 7″, waterproof
- Real-time graphical display of tests
- Control up to 4 different tests at the same time
- 50 readings per second
- 2 USB ports
Specifications:
- Load Capacity – 11000 lbf (50kN)
- Speed range – 0.00001 – 2.00000 in/min
- Data Storage – 1000 tests and up to 3000 readings per test
- Voltage – 110/220V 50/60Hz – 5.0amps

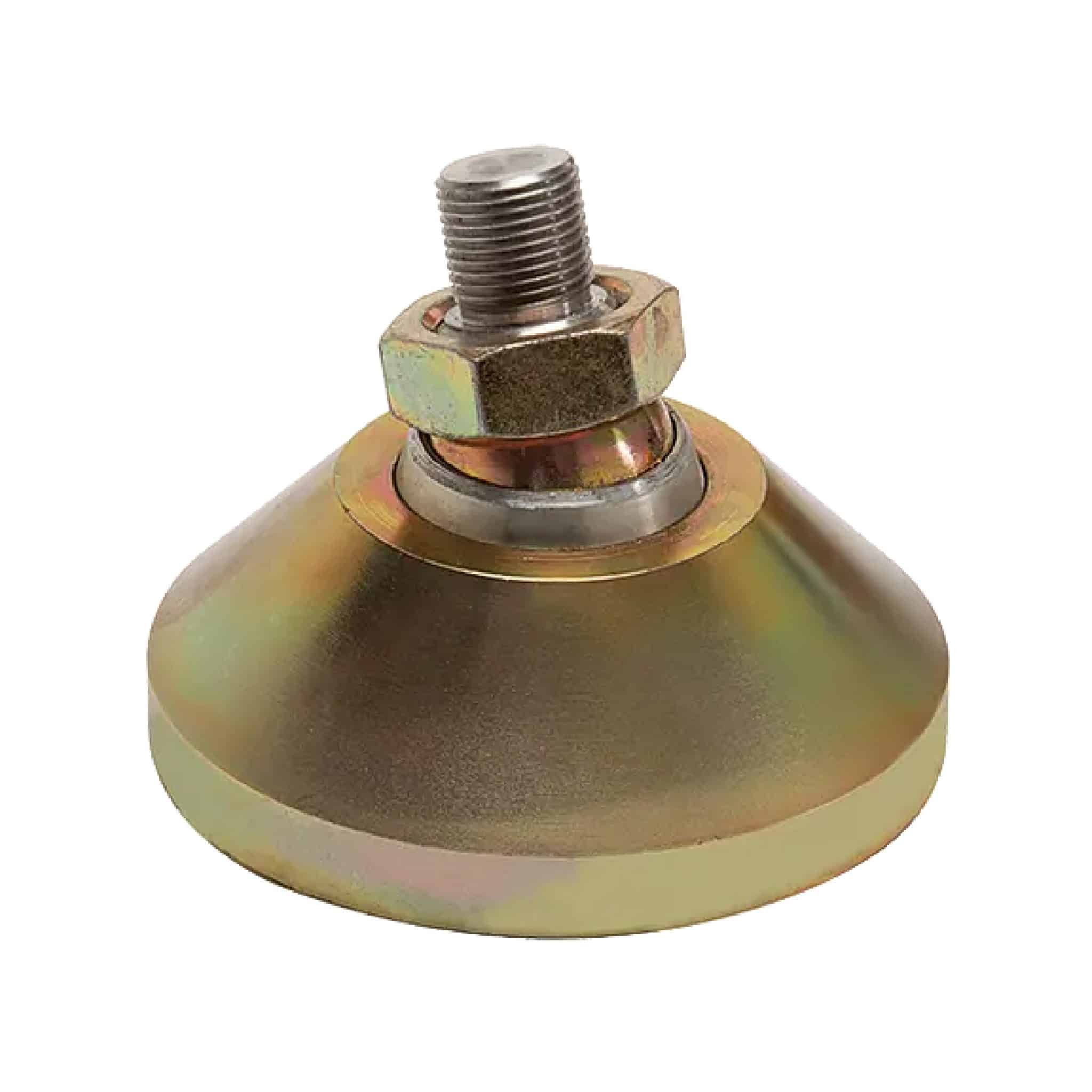

Accessories:
