Temperature Controlled Ductility Tester

ASTM D113, D6084, AASHTO T300, T301, T51

Part: N/A
LP-10 Temperature Controlled Ductility Tester - Temperature Controlled Ductility Tester, 115V 60Hz Temperature Controlled Ductility Tester, 115V 60Hz
-
+
LP-10F Temperature Controlled Ductility Tester - Temperature Controlled Ductility Tester, 230V 50Hz Temperature Controlled Ductility Tester, 230V 50Hz
-
+

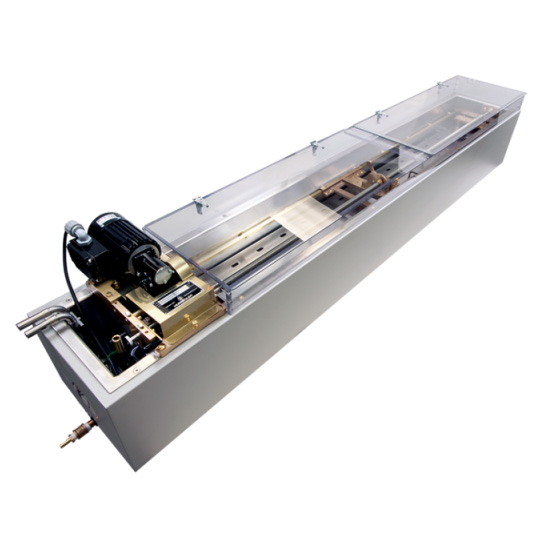

H-1068PC Temperature Controlled Ductility Tester - Cover for Ductility Machines (Clear, Acrylic) Cover for Ductility Machines (Clear, Acrylic)
-
+

Temperature Controlled Ductility Tester

A ductility tester mounts in a heating and cooling circulator for complete temperature control. In addition it measures the elongation of an asphalt binder specimen before failure. A tester mounts in a stainless steel water bath to precisely control test temperatures, while testing three specimens at a time. Equipped with a heating/cooling fluid circulation system, it uses an immersion heater and refrigerating unit to digitally regular temperatures. Temperature regulate from 41° to 77°F ±0.9°. The vibration-free operation system has a maximum stroke of 1,500mm and constant travel speed of 50mm per minute.
