Constant Temperature Bath

ASTM D445

Part: N/A
H-1720 Constant Temperature Bath - Constant Temperature Bath, 100°C, 120V 60Hz Constant Temperature Bath, 100°C, 120V 60Hz
-
+
H-1720.4F Constant Temperature Bath - Constant Temperature Bath, 100°C, 220V 50/60Hz Constant Temperature Bath, 100°C, 220V 50/60Hz
-
+
H-1730 Constant Temperature Bath - Constant Temperature Bath, 150°C, 120V 60Hz Constant Temperature Bath, 150°C, 120V 60Hz
-
+
H-1730.4F Constant Temperature Bath - Constant Temperature Bath, 150°C, 220V 50/60Hz Constant Temperature Bath, 150°C, 220V 50/60Hz
-
+
H-1732 Constant Temperature Bath - IBF Bath Oil IBF Bath Oil
-
+

Oil for baths operating at less than 135°C (275°F). 6-gallon container

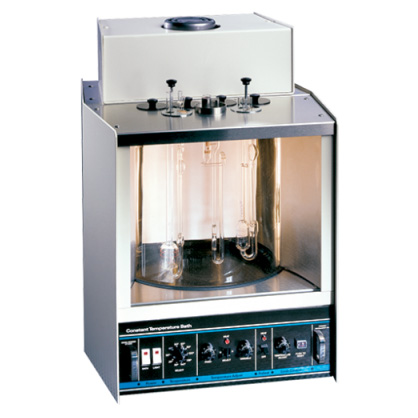

Constant Temperature Bath

A constant temperature bath determines precise viscosity with glass capillary viscometers. The bath offers a 12″ dia x 12″ H bath jar that accommodates to most viscometers. Baths maintain a temperature control of ± 0.01°C within the range of 20°C to 100°C, providing temperature sensitivity. Two electric heating elements inside the bath heat to any desired temperature within range. Bath chambers feature a cylindrical clear glass vessel, with a stainless steel baffle located in the center of the bath. In addition, the top cover contains seven round holes 2″ in diameter for insertion of viscometer holders.
