LA Abrasion Machine

ASTM C131, C535; AASHTO T96



Part: N/A

L.A. Abrasion Machine

The L.A. Abrasion Machine determines the resistance to abrasion in crushed rock, slag, crushed and uncrushed gravel.  The machine features a welded structural steel frame and a fabricated 1/2″ thick abrasion-resistant steel drum. The machine also has a balanced drum assembly for easy rotation by hand.  Additionally, an enclosed chain drive rotates the drum without a conventional slip clutch.  The positive drive delivers greater accuracy, while the self-contained worm-drive motorized speed reducer has anti-friction bearings and sealed lubrication.

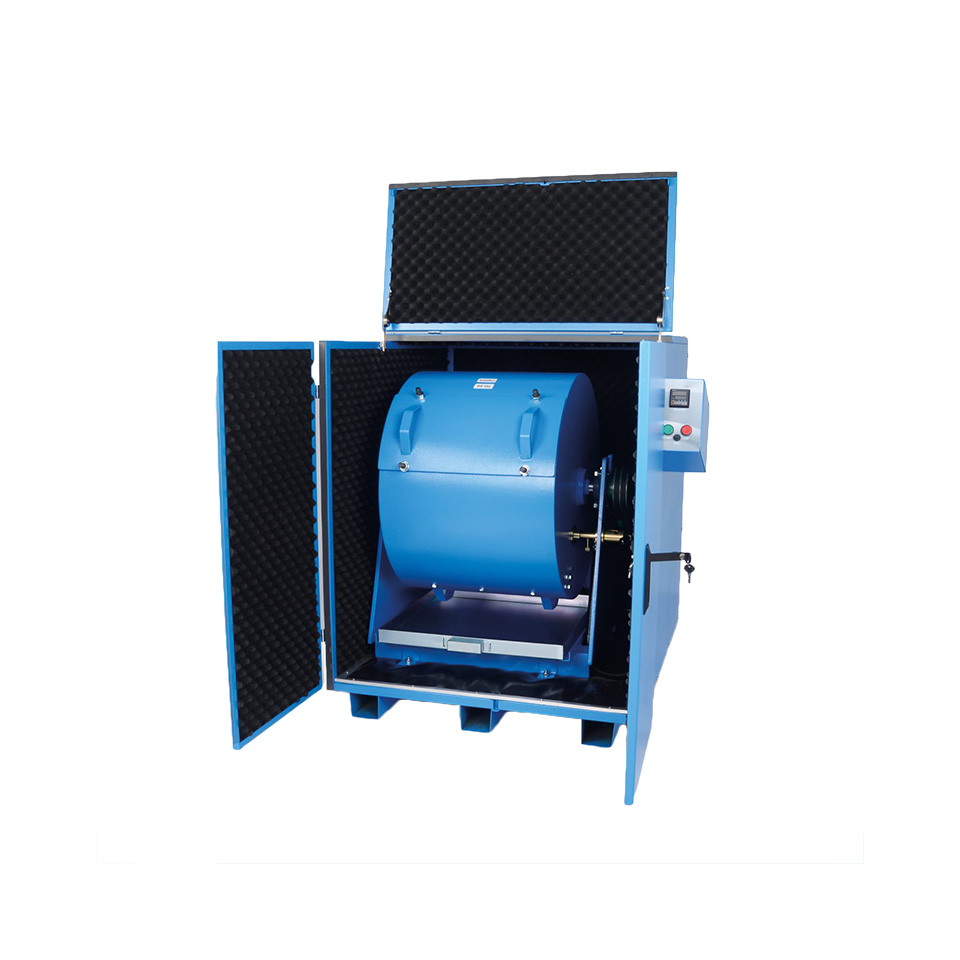

The standard model can be supplied with a safety/noise reduction cabinet (UTA-0601-N). The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives. The cabinet must be ordered with the Los Angeles machine if required, as the electronic control unit will be installed on the safety cabinet at the time of manufacture. The cabinet is equipped with an electric safety device which automatically stops the rotation of the drum when the door is opened, conforming to CE directives.


  • 1HP Push Button & Automatic Overload Cutout Motor
  • Automatic Revolution Counter
  • Material Catch Pan
  • 1 Set Abrasion Charges (12 Hardened Steel Balls)
  • 110-120V, 60Hz, 1ph

Additional information

Weight N/A
Dimensions N/A
