Micro-Deval Apparatus

Meets ASTM D6928, D7428, AASHTO T327 and TxDOT 845-49-40

Part: N/A
MD-2000 Micro-Deval Apparatus - Micro-Deval Apparatus Micro-Deval Apparatus
-
+

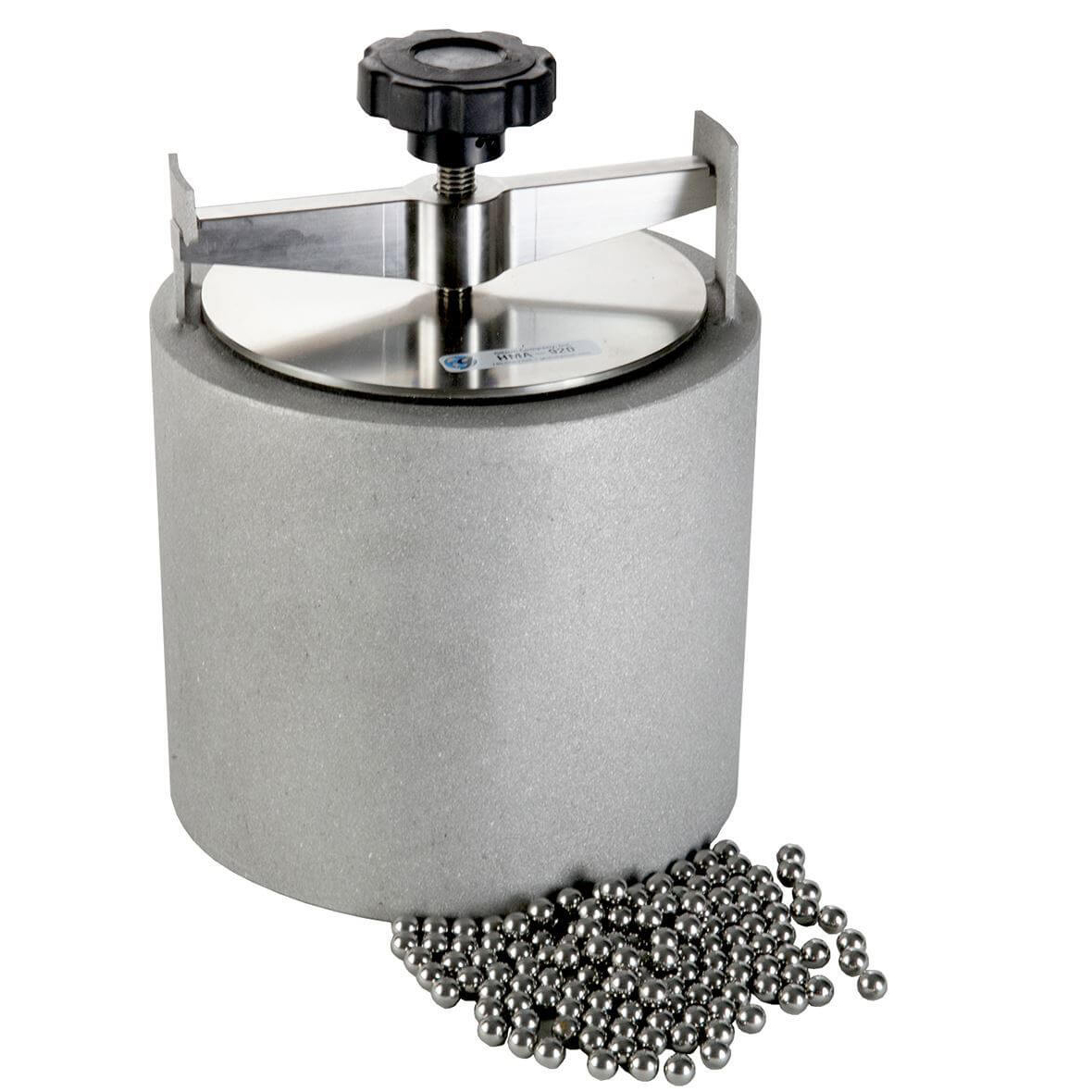

HMA-920 Micro-Deval Apparatus - 5L Micro-Deval Jar w/ Locking Cover 5L Micro-Deval Jar w/ Locking Cover
-
+

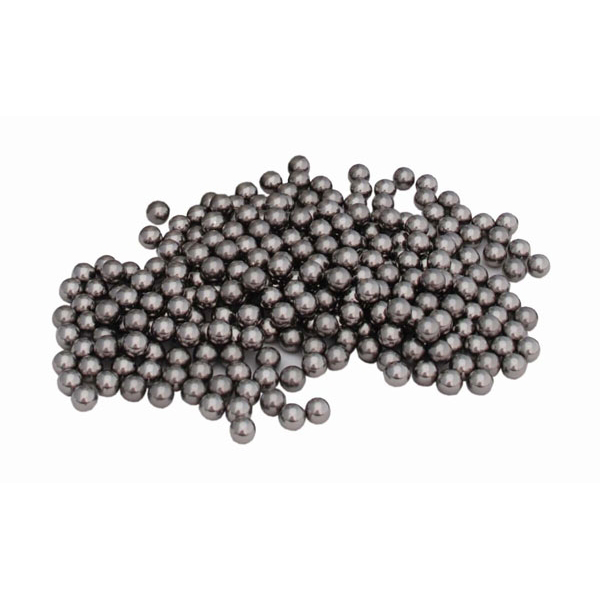

HMA-922 Micro-Deval Apparatus - Micro-Deval Abrasive Charge Micro-Deval Abrasive Charge
-
+

Micro-Deval Apparatus

The Micro-Deval test measures abrasion resistance and durability of mineral aggregates. Placed in a sealed stainless steel jar an abrasive charge up to 5,000g of 9.5mm diameter stainless steel balls and water. Rotated at 100 RPM for 2 hours. Percentage loss in the graduation results at completion determines quality of an aggregate. Small equipment size, lower sample quantities and a simpler procedure make the method easier and less costly.

  • Multi-function electronic controller tracks time, speed and total revolutions
  • Easier, safer and less expensive to operate
  • Lexan doors and safety interlocks ensure no exposed moving parts

Included:

  • Micro-Deval Apparatus
  • Two jars
  • Two sets of 5,500g abrasive charge
  • Magnet to assist in removing abrasive charge after a test

Data Sheet

Additional information

Weight248 lbs
Dimensions13.5 × 20.5 × 38 in
