Compression Machine 250K

CM-2500 Series Compression Machine

250,000 lbs/1,112 kN Capacity

  • Testing Range:  2,500 – 250,000 lbs (11 – 1,112 kN)
  • Accuracy:  ±0.5% of indicated load
  • Supplied with 6″ platen test set for testing cylinders using unbonded or sulfur capping method
  • Continuous duty hydraulic pump runs quieter, cooler, and with greater rate of load control

ASTM C39, E4; AASHTO T22

Part: N/A
CM-2500-i720 Compression Machine 250K - cm-2500-i720 CM-2500 Series with i720 Digital
CM-2500-iD Compression Machine 250K - cm-2500-id CM-2500 Series with iD Digital
CM-2500-TS17 Compression Machine 250K - cm-2500-series-with-ts17-digital CM-2500 Series with TS17 Digital

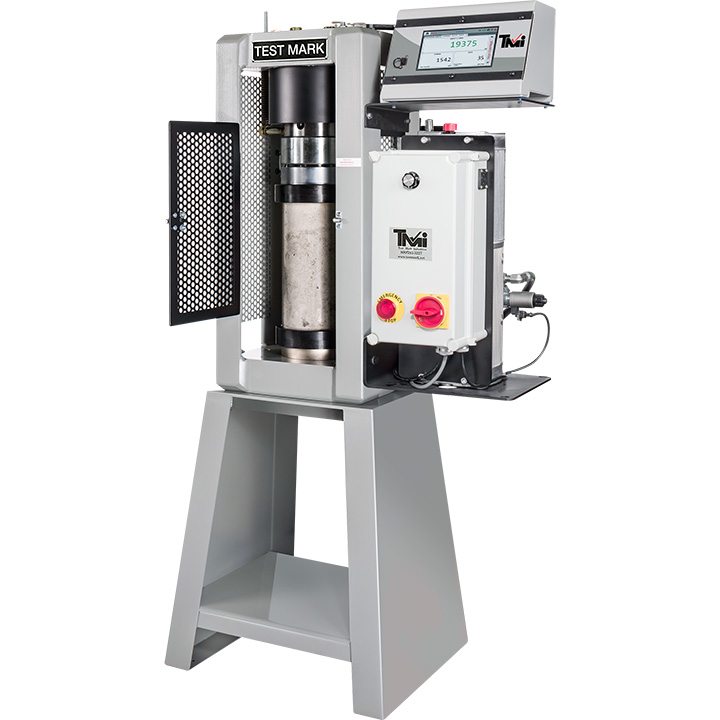

Compression Machine 250K

The Compression Machine 250K is the ideal choice for either the field or laboratory because it is accurate, portable, versatile, dependable, and compact.  It is well suited for testing 6” x 12” concrete cylinders up to 7,000 psi.  It can also test with the optional platens, low strength concrete beams.

The compression machine’s load frame has structural steel side members and solid steel crossheads.  It also features a unique wraparound box construction design.  The design fully welds each corner on both the inside and outside crosshead seams.  This rugged construction provides the stability needed for accurate and repeatable test results year after year.

  • Testing Range:  2,500 to 250,000 lbs
  • Accuracy:  ±0.5% of indicated load
  • Supplied with platen set for testing 6” x 12” cylinders using unbonded or sulfur capping method and steel safety guard doors
  • Continuous duty hydraulic pump runs quieter, cooler and features greater rate of load control
  • Optional Accessories Include:  Test platen sets, spacers, machine mounting stand, test cylinder loading shelf and ¾ hp (.6kw) hydraulic pump package
  • 2 Year Warranty on Parts and Labor

Optional Accessories:

  • Test Platen Sets
  • Spacers
  • Machine Mounting Stand
  • 3/4 hp (.6kw) Hydraulic Pump Package

COMPARE DIGITAL INDICATORS

i720 Digital Features:

  • Simultaneously displays both live load and rate of load
  • 5.3″ wide backlit VGA liquid crystal display (240 x 64 pixels)
  • Stores up to 600 tests in memory

iD Digital Features:

  • Simultaneously displays load, sample stress, rate of load, and type/size of sample
  • 4.6″W x 3.4″H backlit VGA display (320 x 240 pixels)
  • Holds up to 500 tests in memory
  • Automatically calculates and displays peak stress at the end of a test

TS17 Digital Features:

  • 2 Load Calibration Channels – Controls 2 testing machine load frames and 2 strain calibration channels
  • Up to 1,000 tests stored in memory
  • 7″ full color, waterproof controller
  • Data transferred through USB flash drive or Ethernet port
