Automatic Cylinder End Grinder

Meets ASTM C31, C39, C42, C192, C617

Clear
Part: N/A

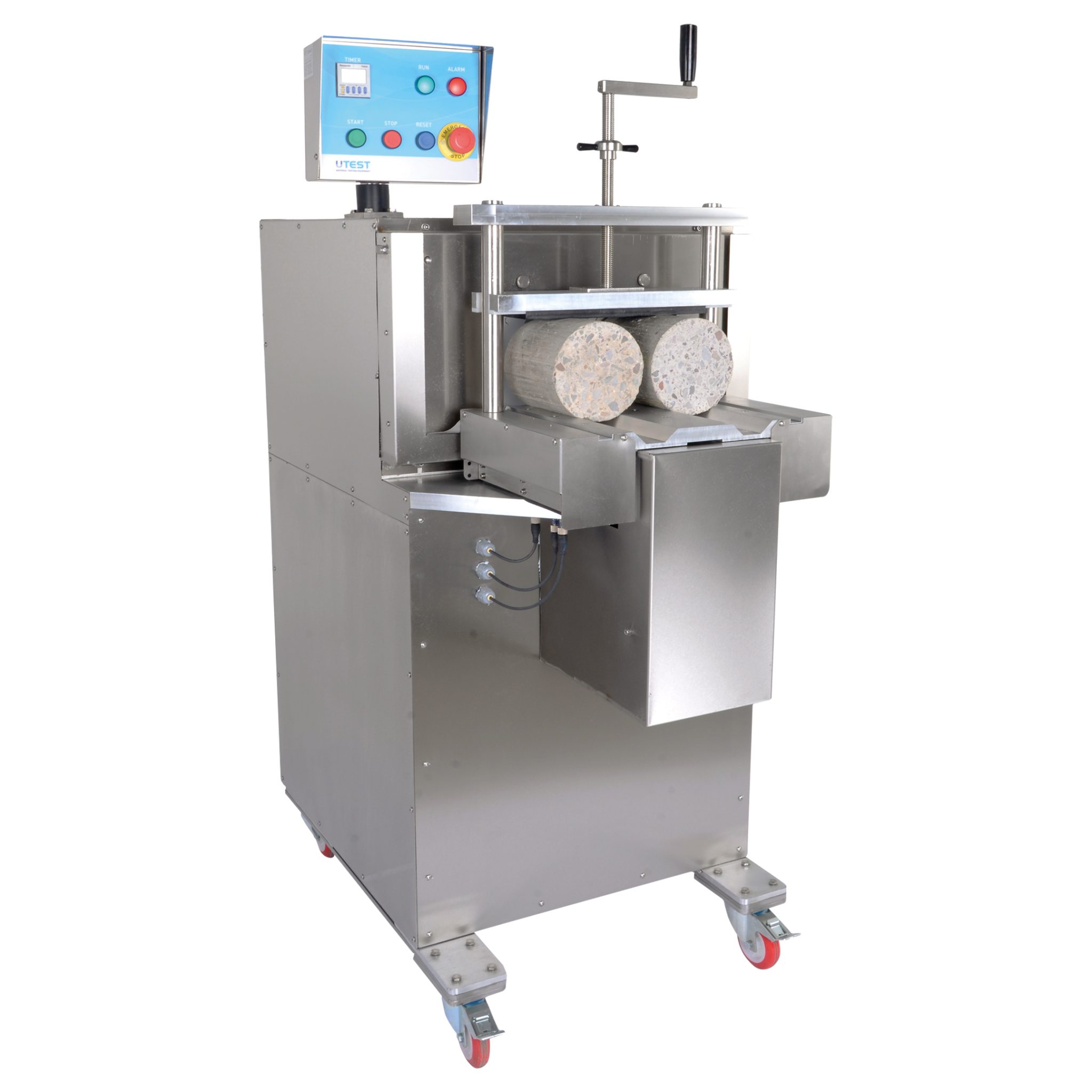

Automatic Cylinder End Grinder

The automatic cylinder end grinder provides fast grinding of cylinder specimen ends to obtain plane and parallel surfaces.  The machine has selectable advance grinding time functionality by user from 50 to 400 seconds.  Optimum grinding time per end of all type specimens is 90 to 120 seconds.  The specimen cradle features automatic bidirectional radial displacement ability.  The safe and ergonomic design prevents exposure to water and dust.  It also provides easy access to the water inlet and outlet.

Three concrete cylinder specimen of 38 to 100 mm (1.5″ – 4″) or two specimen of 150 to 160 mm (5.9″ – 6.3″) can fit in the machine at one time.  Three concrete cubes of 100 mm (4″) or one cube of 150 mm can be ground simultaneously with the suitable cradle and water restraint panel.  The length of the specimens must be longer than 70 mm.

The automatic cylinder end grinder features bottom wheels for ease of mobility.  Additionally, its aluminum frame provides a lighter weight and the stainless steel exterior shell assures corrosion resistance.

Data Sheet
