Riffle Splitters

Part: N/A

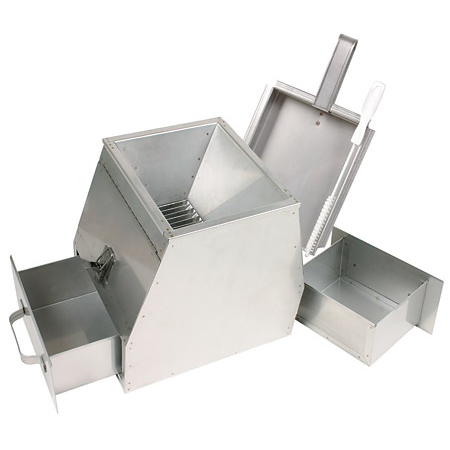

H-3970 Riffle Splitters - 25-14-375w-6-5w-x-8l .25", 14(.375"W) 6.5"W x 8"L
-
+
H-3975 Riffle Splitters - 25-24-375w-4-5w-x-11l .25", 24(.375"W), 4.5"W x 11"L
-
+
H-3964 Riffle Splitters - 33-14-500w-6-75w-x-11l .33", 14(.500"W), 6.75"W x 11"L
-
+

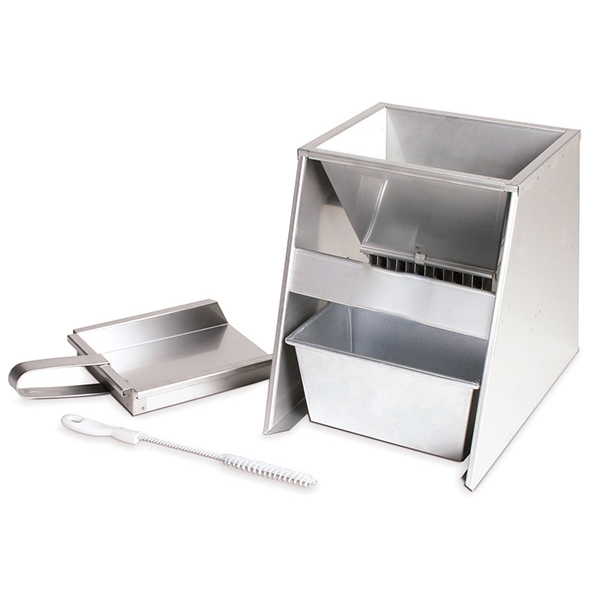

H-3962 Riffle Splitters - 0-25-14-375-x-6-75w-x-8l 0.25", 14(.375") x 6.75"W x 8"L
-
+
H-3966 Riffle Splitters - 50-14-750w-6-75w-x-14-75l .50", 14(.750"W), 6.75"W x 14.75"L
-
+
H-3987 Riffle Splitters - 66-161-00w-9w-x-20l .66". 16(1.00"W) 9"W x 20"L
-
+
H-3990 Riffle Splitters - 1-00-101-50w-9w-x-20l 1.00", 10(1.50"W), 9"W x 20"L
-
+

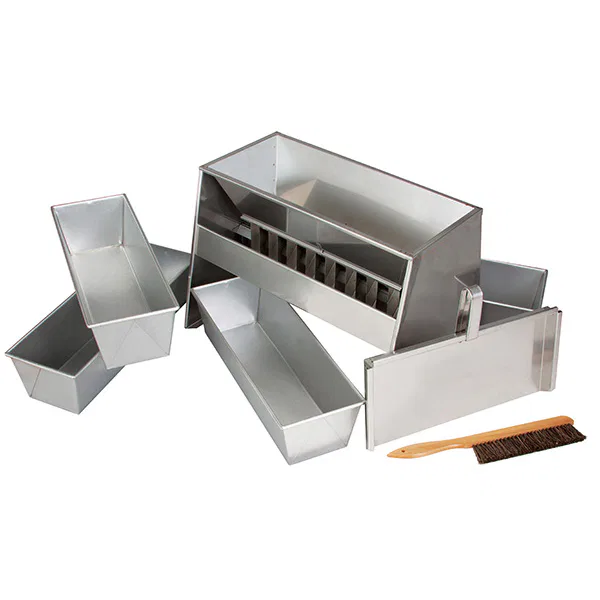

H-3989 Riffle Splitters - 1-33-82-00w-9-5w-x-19-5l 1.33", 8(2.00"W), 9.5"W x 19.5"L
-
+
H-3992 Riffle Splitters - 1-67-82-50w-9w-x-24l 1.67", 8(2.50"W), 9"W x 24"L
-
+
H-3980 Riffle Splitters - 332-12-500w-8-5w-x-11l .332”, 12 (.500”W), 8.5”W x 11”L
-
+
H-3985 Riffle Splitters - 500-12-75-8-5w-x-14l .500”, 12 (.75”), 8.5”W x 14”L
-
+
H-3986 Riffle Splitters - steel-pan-10-5-x-5-5-x-4-5 Steel Pan, 10.5 x 5.5 x 4.5"
-
+

Replacement pan for H-3962 and H-3964

H-3976S Riffle Splitters - stainless-steel-replacement-pan-for-h-3975 Stainless Steel Replacement Pan for H-3975
-
+
H-3977S Riffle Splitters - stainless-steel-replacement-pan-for-h-3970 Stainless Steel Replacement Pan for H-3970
-
+
H-3988 Riffle Splitters - steel-pan-19-x-6-5-x-5-25 Steel Pan, 19 x 6.5 x 5.25"
-
+

Replacement for H-3987, H-3989 & H-3990

Riffle Splitters

Riffle Splitters divide or halve dry materials. Such as cement, gravel, powdered ores, coal, coke, sand, soils, etc.  Material poured into the hopper divides into two equal portions. A series of chutes discharge the material alternately in opposite directions into separate pans.

ModelTop Material SizeNumber of Chutes (Width)Hopper WxLPans (included)
H-39620.25″14 (.375″)6.75″ x 8″4
H-39640.33″14 (.500″)6.75″ x 11″4
H-39660.50″14 (.750″)6.75″ x 14.75″4
H-39870.66″16 (1.00″)9″ x 20″4
H-39891.33″8 (2.00″)9.5″ x 19.5″4
H-39901.00″10 (1.50″)9″ x 20″4
H-39921.67″8 (2.50″)9″ x 24″4
H-39800.33″12 (.500″)8.5″ x 11″4
H-39850.50″12 (.75″)8.5″ x 14″4
H-39700.25″14 (.375″)6.5″ x 8″2
H-39750.25″24 (.375″)4.5″ x 11″2
