Flex Panels, 110/220VAC 50/60Hz

Flex Panels, 110/220VAC 50/60Hz

$1,960.00$9,000.00

ASTM D5084; BS 1377 Part 6 1990

SKU: N/A Category:

Flex Panels, 110/220VAC 50/60Hz

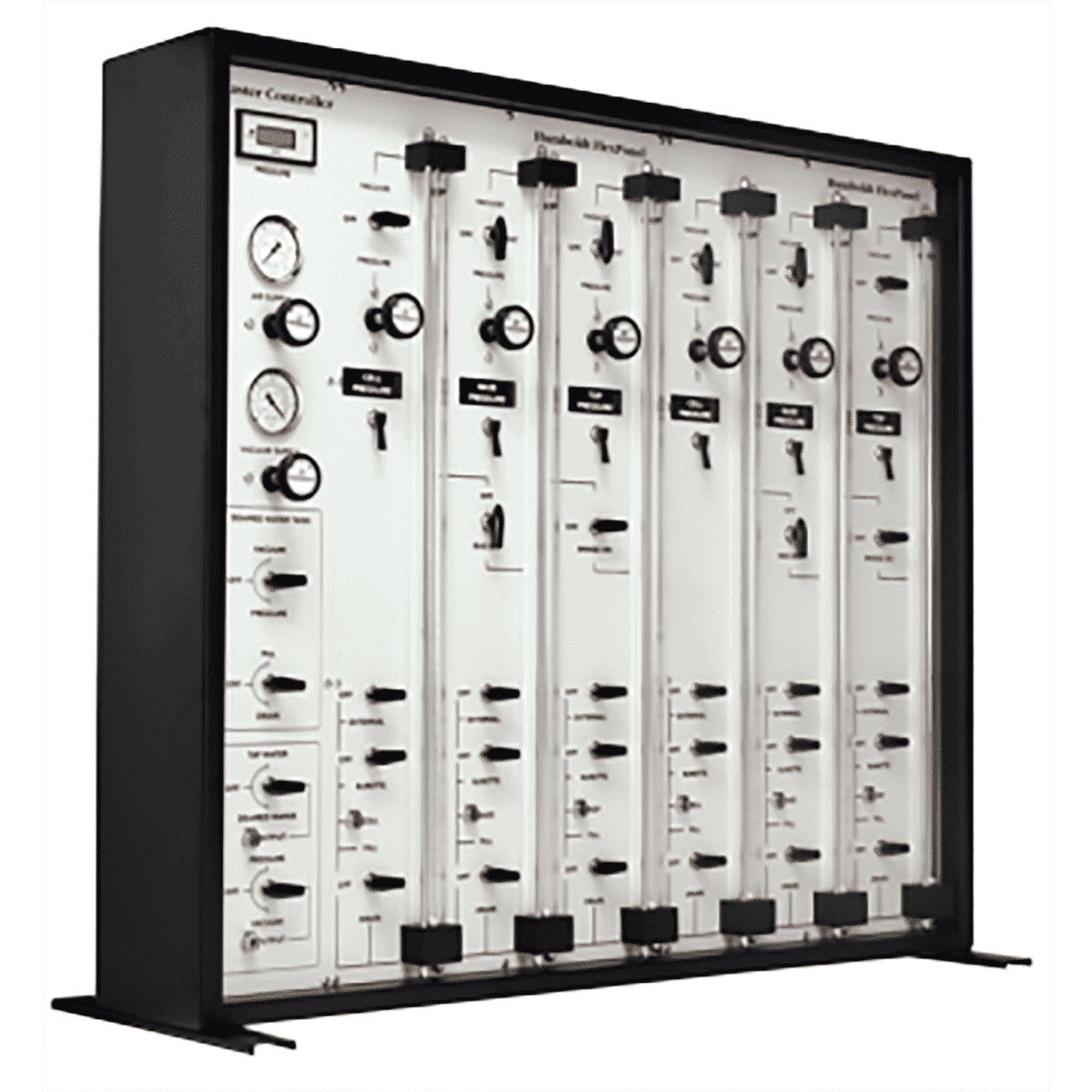

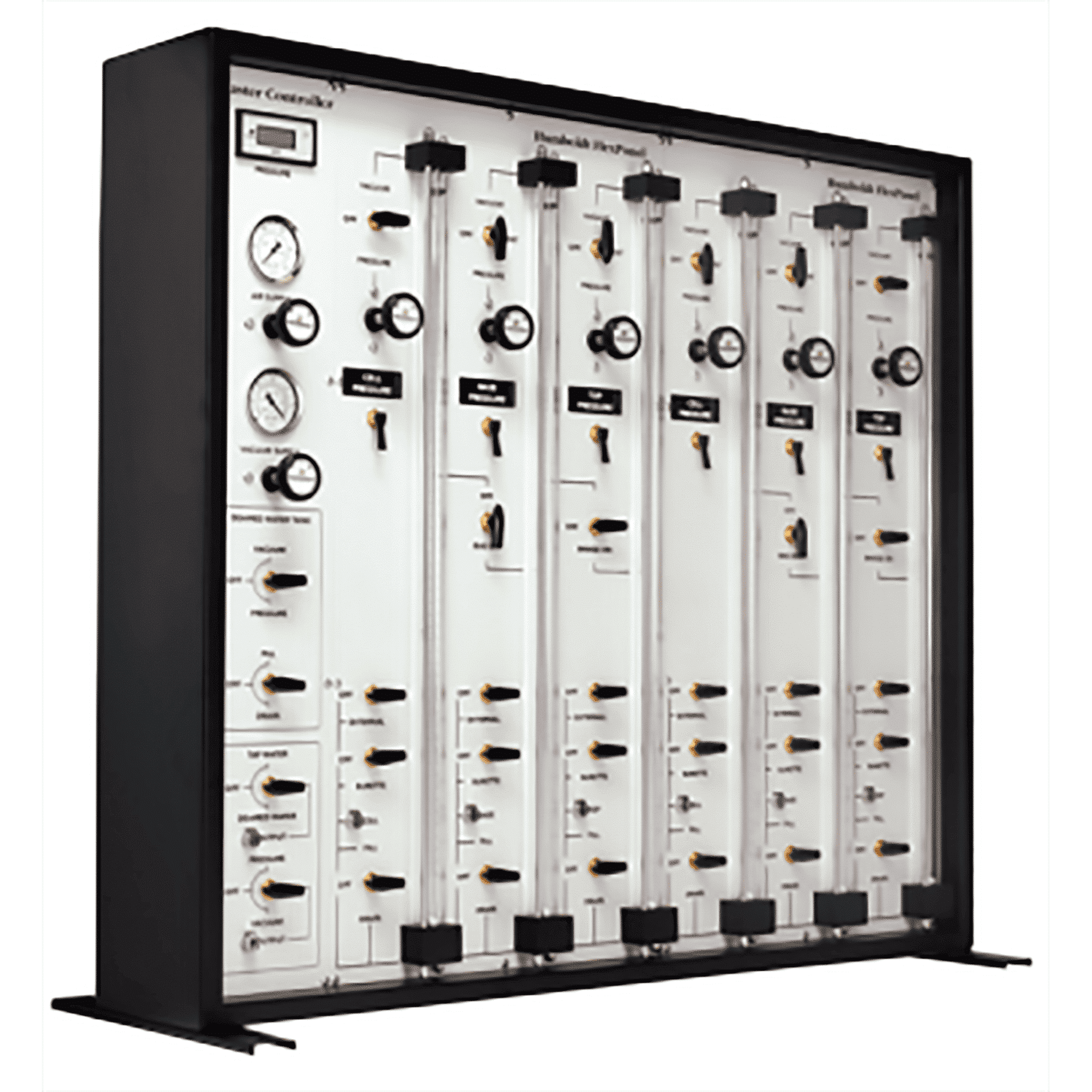

The flex panels feature longer burettes and 0.02ml graduation that give more accurate results and faster turnaround time. The bias pressure regulator allows simultaneous control of confining and back pressures, while maintaining a constant differential. The bridge feature delivers simultaneous control of base and top pressures by adjusting one pressure regulator.

Each flex panel includes a digital readout pressure meter, a pressure supply gauge and master pressure regulator. In addition a vacuum supply gauge, master vacuum regulator, de-aired water tank controls come included. As well as tap and de-aired water supply outlets and pressure and vacuum outlets.

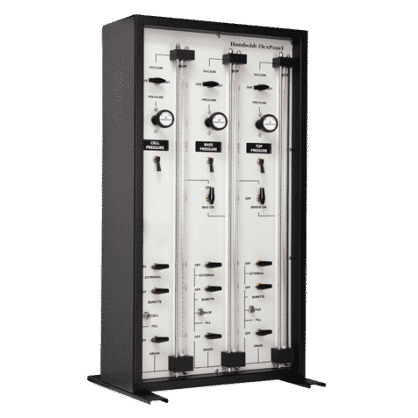

The 1-Cell Auxillary panel provides additional sets of burettes for 1 cell, used to expand the capacity of a system. Each set of three burettes provide the controls necessary for another cell. Any combination of up to five burette sets use each control panel.

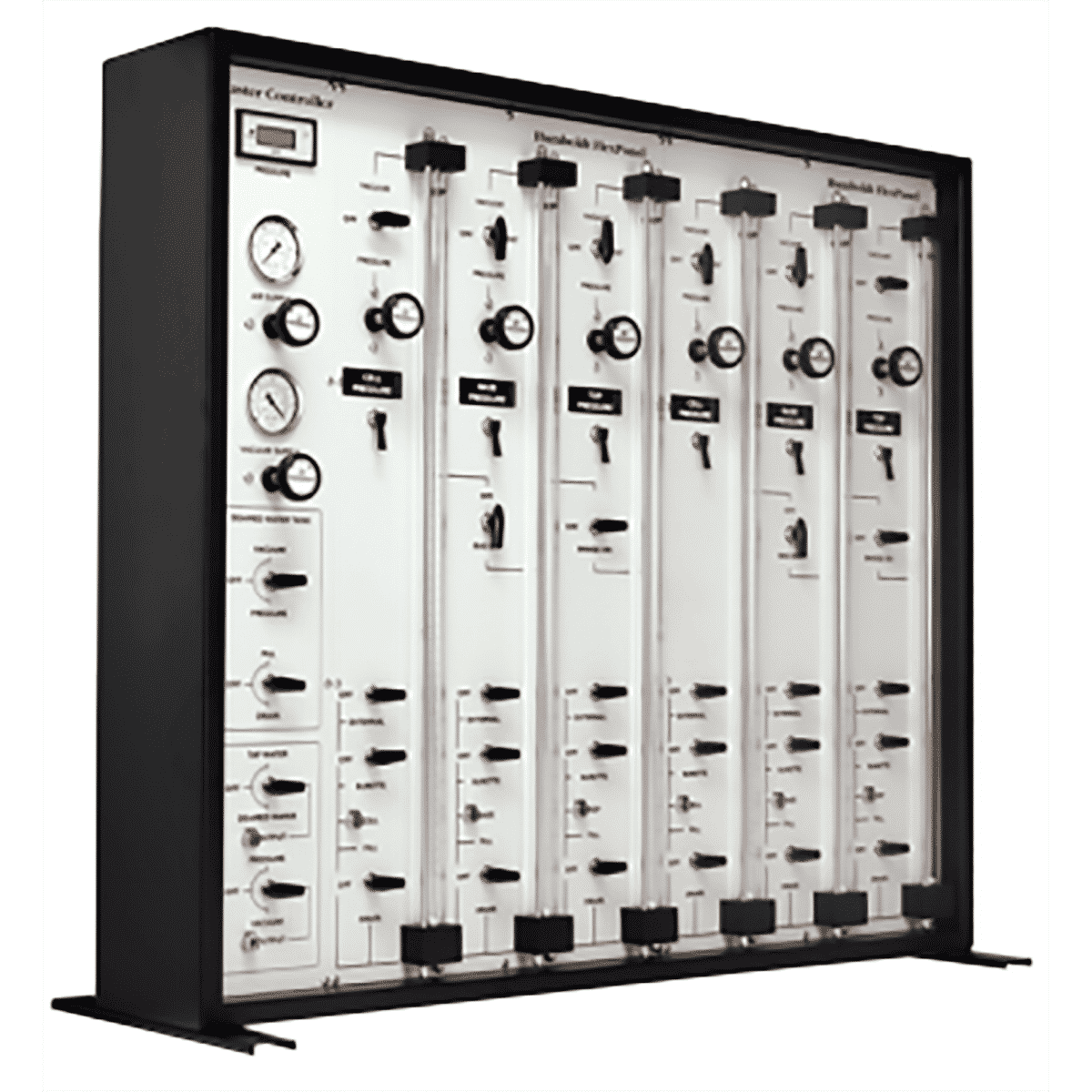

The 2-Cell Auxillary panel provides additional sets of burettes for 2 cells, used to expand the capacity of a system. Each set of three burettes provide the controls necessary for another cell. The 2 cell panel provides 2 sets of 3 burettes. Any combination of up to five burette sets use each control panel.

Estimated Shipping Weight:

  • HM-4140.3F – 35lb (16kg)
  • HM-4150.3F – 95lb (43kg)
  • HM-4160.3F – 145lb (66kg)
Weight N/A
Dimensions N/A
