Dual Mass Dynamic Cone Penetrometer
The dual mass dynamic cone penetrometer provides high quality manufacturing and reliability. The penetrometer is available with a threaded connections or a quick-connect design. Both designs feature an easy grip hammer. The hammer features a finger grip machined into the back side of the hammer flange. Providing easy and non-slip lifting when performing a test. The threaded coupling system ensures for a long lasting life of the drive rods and extension by providing a tight, connection every time. Also, eliminating the loss of hammer blow energy through the connections.

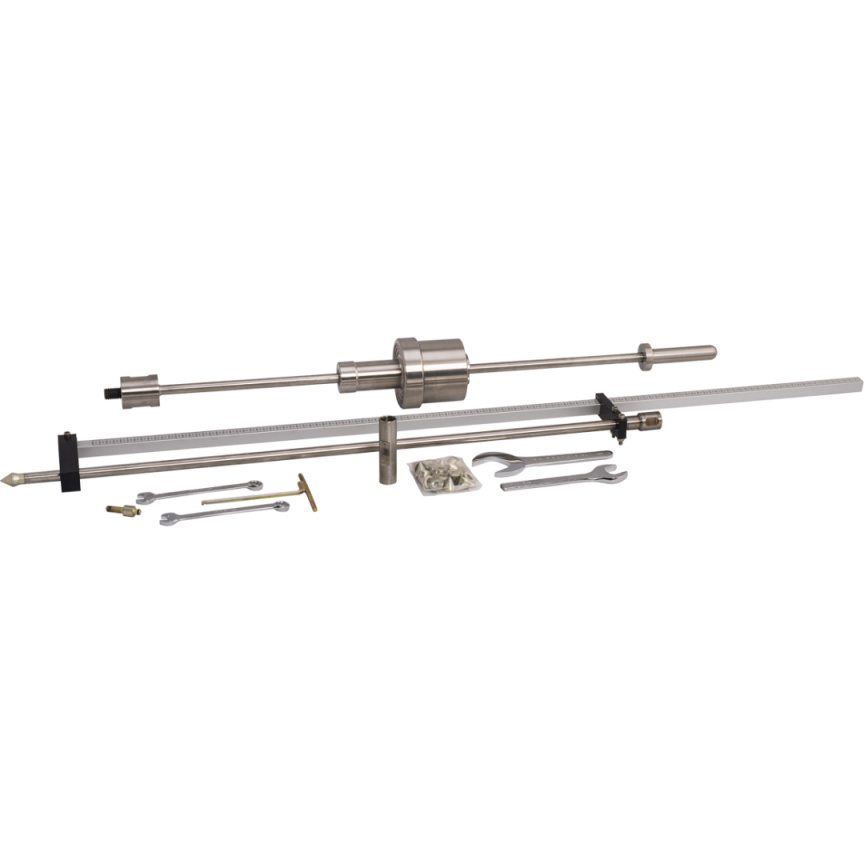

The H-4219T Set includes:
Dual-Mass DCP Hammer, Threaded Connection — H-4219T.1
Drive Rod, Threaded, 37.75″— H-4219T.2

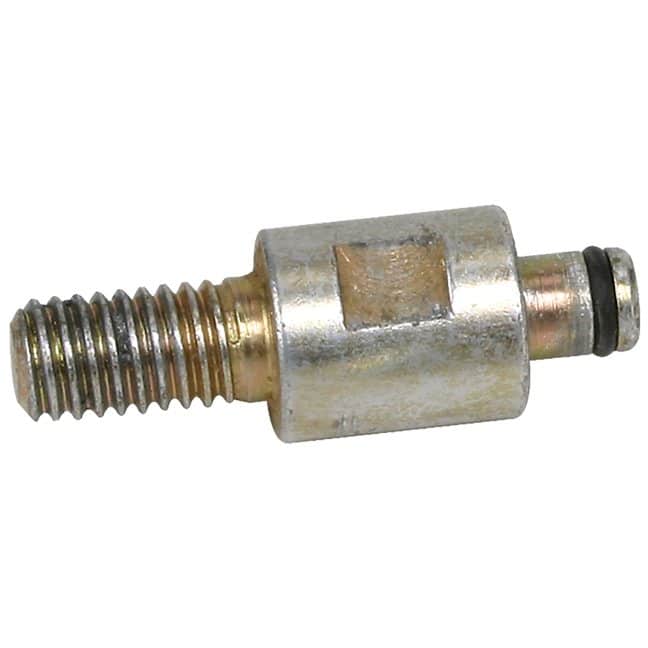

Disposable Cone Adapter (3/8-16 threads) — H-4219.5
Hard Tip Cone (3/8-16 threads) — H-4219.4

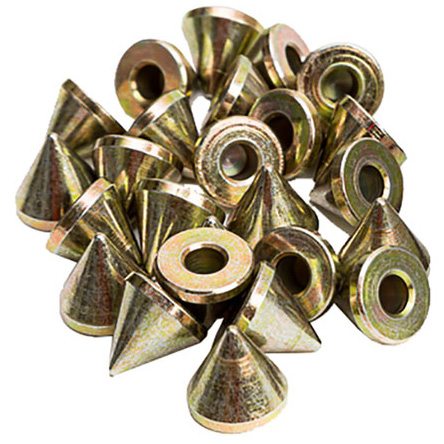

Disposable Cones (25) — H-4219.25
Scale, 48″ — H-4219.2
Single-user Scale Guide Set — H-4219.17
Wrench Set (Threaded) — H-4219T.7
Go, No-Go Gauge — H-4219.3
Pelican Case — H-4219.16
User Manual
The dual-mass DCP can be quickly converted to a single mass unit for use in weaker soils having low CBR values or foundation evaluations by removing the hexagon set screw and the outer sleeve from the dual-mass hammer.
- CBR values: Less than 0.5 to 100%
- Bearing values: ranging from 430 to 10,800 psf
- Depths: 30 in. to 6 ft.
