Windsor Probe System

ASTM C803

Part: N/A
WP-534 Windsor Probe System - windsor-probe-system-manual Windsor Probe System - Manual Readout
-
+
WP-1000 Windsor Probe System - windsor-probe-system-digital Windsor Probe System - Digital Readout
-
+

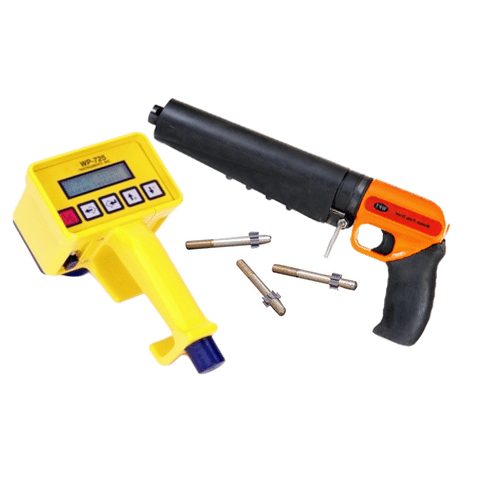

Windsor Probe System

The Windsor Probe System determines the compressive strength of in-place concrete.  The non-destructive system is used on both fresh and mature concrete, either horizontally or vertically. The system rapidly and accurately determines the concrete compressive strength of a structure by driving a probe into the concrete with a known amount of force.  It is capable of measuring concrete with a maximum compressive strength of 17,000 PSI.  The system also comes equipped with an electronic measuring unit to help ensure proper test results.

Windsor Probes

High-performance concrete that has a strength up to 17,000 psi (110 MPa) uses silver probes.  Constructed of a high strength alloy and heat treated, the probes achieve a hardness of Rockwell C 48. In addition, the specially machined probes eliminate stress concentrations.  Light-weight concrete uses gold probes because they have a 56% greater cross-sectional area than the silverss than 125 lbs/cu. ft. in density).

Applications

  • Concrete Strength Determination (Standard concrete, high-strength, light-weight)
  • Form Removal
  • Structural Analysis

Windsor Probe Data Sheet
